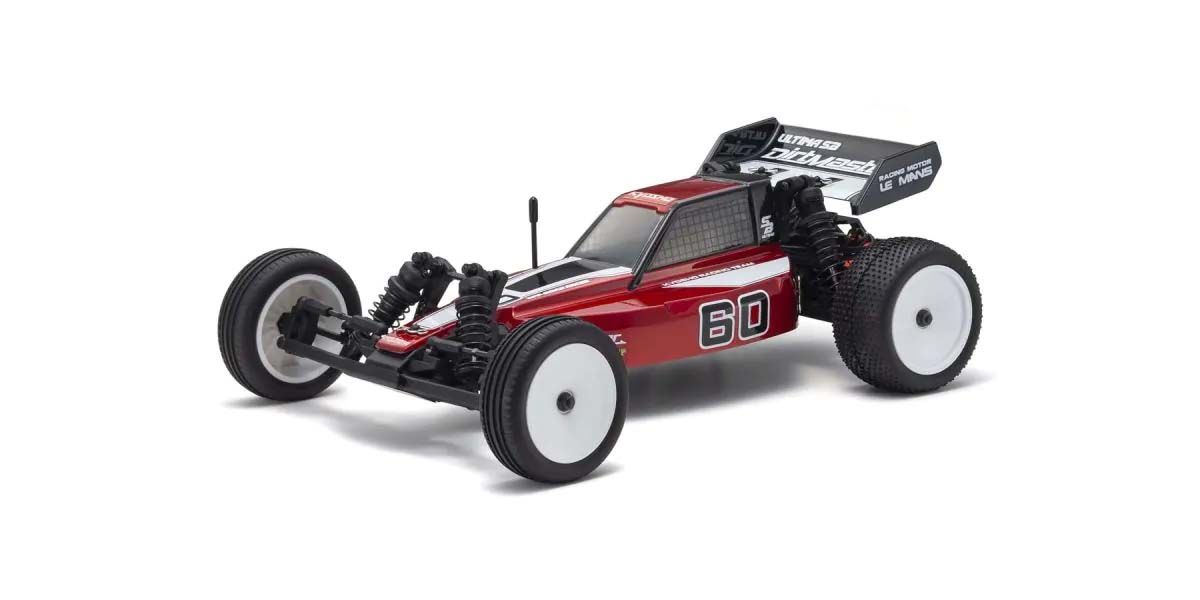

1:10 Kyosho Ultima SB Dirt Master 2WD Kit (K.34311B)

Buggies were created to venture off-road over rough surfaces at high speed and the Ultima SB Dirt Master is a return to the purest form of this fun and excitement. If you want more than the entry-level model can deliver but top-end models are too focused on racing, the Dirt Master is perfect for good honest bush-bashing fun! Based on the competition-level Ultima RB5, the Dirt Master was developed as a mid-class buggy featuring high quality key performance components, at a reasonable price. The rear motor layout ensures secure rear tire grip that demonstrates rock-solid stability over low grip surfaces such as gravel and riverbeds. As the Ultima SB Dirt Master shares its racing heritage with the RB5, it is also at home on fully-fledged RC racing circuits too. With the excellent basic chassis design and a completely new body with a nostalgic flair, beginner drivers looking to step up to the next level of performance or hard-core racers looking for some fun will discover the Ultima SB Dirt Master is true to the original spirit of the buggy.

• Based on a competition-level racing buggy, this unassembled EP buggy kit delivers high performance at a low price.
• Rear motor design delivers excellent rear tire grip and superior control.
• Included front/rear tires and wheels demonstrate stability over various types of road surfaces.
• Classic style body with ageless smart design is equipped with a rear wing that enhances driving stability.
• Resin main chassis is easy to assemble and exhibits moderate flex characteristics, and can be equipped with standard RC components.
• Race-proven double-wishbone front and rear suspension is equipped with precision resin oil shocks.
• Steering mechanism is equipped with a servo saver function that protects the servo from crash shocks.
• Full bearing specifications as standard greatly improves drive system efficiency.
• Compatible with optional parts for the Ultima series and racing springs.
• Driver Set from 2014 Beetle (No.SCB003B) can be installed to enhance scale realism.

Kit Contents

• Polycarbonate clear body
• Wing
• Window mask seal
• Decals
• Chassis parts
• Cross wrench
• Hex wrench（1.5mm/2.0mm）
• Grease
• Tires, Tire Inners, Wheels
• Pinion Gear

Technical data

• Length 380mm
• Width 249mm
• Height 140mm
• Wheelbase 270mm
• Tread F:221mmR:201mm
• Tire F:φ84×28mm R:φ86.5×42mm
• Gear Ratio 8.23：1
• Weight 1,450g (approx.)
• Motor (sold separately)

Required for Operation

• 2 Channel R/C System (1 x servo, 1 x ESC)

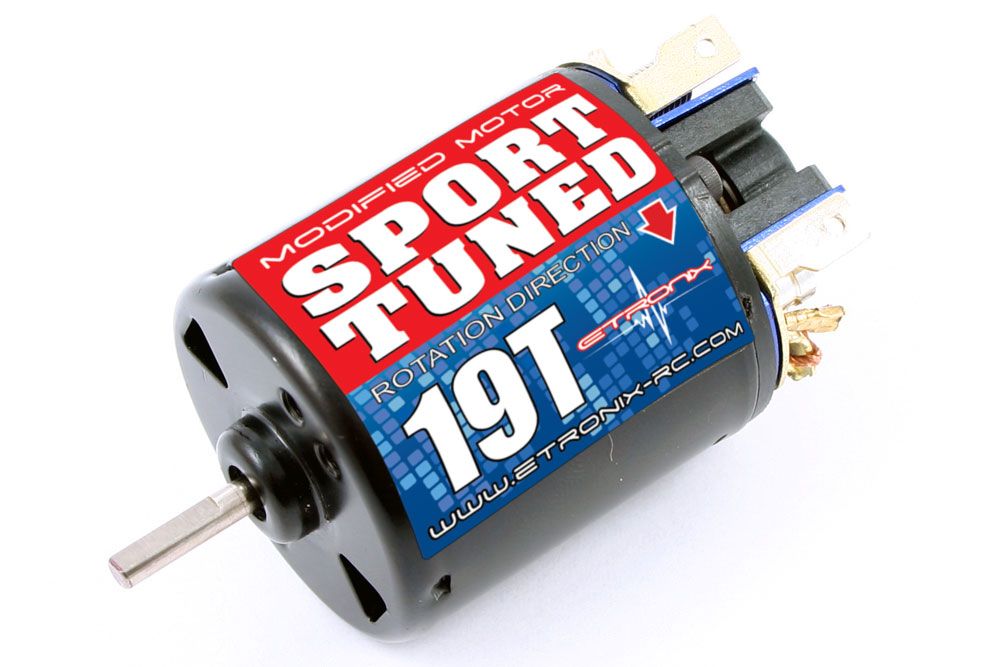

• 540 Motor
• Battery (7.2V NiMH or Li-Po battery)
• Charger
• Paint for body
• Batteries for transmitter

https://youtu.be/93wvWNqYXEE
