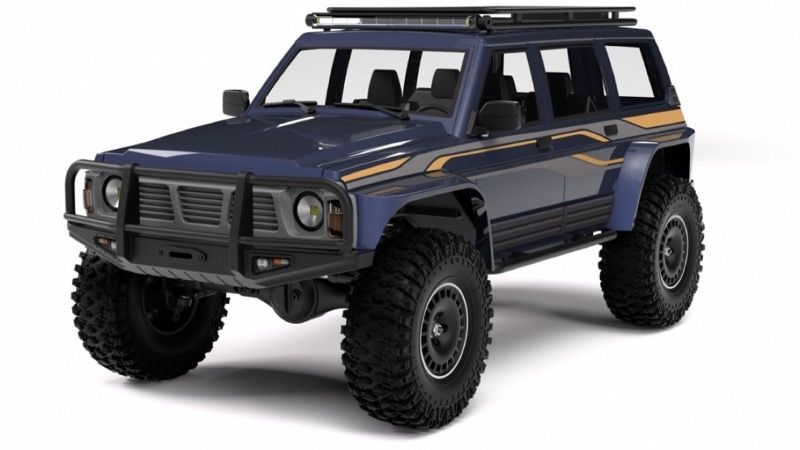

Absima 1:10 EP Crawler CR4.4 "PATROL"Light Dark Blue" RTR ( AB 12041)

NEW!  Newly developed "Low  Center of  Gravity" chassis

NEW!  Innovative "Trail Turn" function

NEW!  "Low  Center of  Gravity"  gear box

NEW!  Revised servo protection function with a steering damper

NEW!  10-channel remote control and 2-in-1 receiver/light unit

NEW!  Separate waterproof Hobbywing speed controller

The completely redesigned tub-like chassis offers many advantages! All electronic components are freely accessible, which is essential with so much technology installed! Thanks to the extremely flat LCG chassis and the matching gearbox, the center of gravity is shifted downwards, which is particularly helpful with high body concepts. The battery box is centered and can be perfectly adapted to all 2-3S Lipo and 6-7 cell NiMH batteries thanks to the Velcro fastener and adjustable holder. The 10-channel remote control is necessary to control all the technical features. The 2-in-1 receiver/light unit and the speed controller are kept separate to keep all options open for future optimizations/tuning measures.

Innovative TRAIL TURN function (patent) that locks a single wheel on the rear axle, thus enabling a tighter turning circle. Pressing the CH4 button automatically unlocks the rear differential and the Trail Turn servo at the rear of the vehicle now reacts to the steering movement and locks the inner rear wheel using the built-in brake discs.

• LCG chassis and gearbox design for maximum traction on any incline and extreme lean angles.
• Adaptable battery box design

• Adjustable aluminum oil-filled shock absorbers
• Lockable differentials front & rear (independently adjustable via transmitter)
• 2-speed transmission (switchable via transmitter)
• Steering shock absorber system as servo protection function
• Fully functional LED vehicle lighting (switchable via transmitter)
• Realistically designed interior with many details
• 1.2mm PC body with many add-on parts, clear windows

DRIVE SYSTEM

• All steel gear train, plastic spur gear
• Full ball bearings
• Steel U-joints on front axle
• Portal axles on front and rear
• Ultra-grippy 2.2 Competition tires
• Standard gearing 14T-M0.6 (Standard): 70.3@low speed / 30.2@high speed
• Further gear reduction (optional): 12T = 81.9@LS & 35.2HS / 13T = 75.7@LS & 32.5@HS / 15T = 65.6@LS & 28.2@HS

ELECTRONIC COMPONENTS

• 25kg "High-Torque" digital steering servo with metal gear (25T)
• 550 32T brushed motor with 14T M0.6 pinion
• WP-1060 Hobbywing ESC (waterproof; 2-3S LiPo-suitable; 6V/3A; 60/80A)
• 25kg "Trail Turn" digital servo with metal gear (25T)
• 3* mini servos 17g/0.9kg for 2-speed transmission and diff locks

RADIO SYSTEM

• 2.4GHz 10-channel remote control (operates with 2S TX LiPo or 4* AA Mignon)
• 10-channel receiver unit with separate light unit
• Motor brake adjustable via transmitter (CH5)
• 2-speed transmission switchable via transmitter (CH8)
• Differential locks switchable via transmitter (CH3&CH4)
• Lighting system controllable via transmitter (CH7)

TECH SPECS
