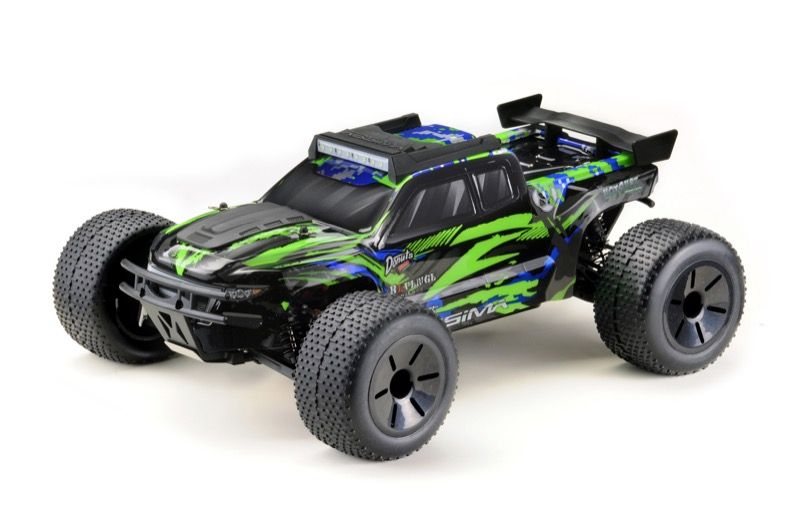

Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT ( AB 12223V2KIT)

In stock Available in Store

SKU: AB12223V2KIT-bundle

From £0.00

To £202.34

Customize Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT ( AB 12223V2KIT)

Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT (AB12223V2KIT) The car kit

1 x Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT ( AB 12223V2KIT) + £94.95

Additional items to complete

1 x Core RC - 4012 - Servo 4Kg .12 Sec (CR493) + £9.49

1 x Hobbywing QUICRUN - WP1060 - Brushed - Sbec (HW30120060007) + £22.49

1 x Enrichpower EP Stick Pack - SC2000mAh - 7.2V NiMh (EP2000S) + £14.24

1 x Overlander Overlander NX-20 NiMH 20W Compact Charger (OL2914) + £15.18

1 x Core RC CORE 15 Silver Can Brushed 540 Motor (CR710) + £9.49

1 x Absima 4 Channel Radio CR4S V2 2.4GHz incl. 1 Receiver (AB-2000014) + £36.50

Your Customization

Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT ( AB 12223V2KIT)

Summary

Description / Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT ( AB 12223V2KIT)

The success story continues! We have equipped the AT3.4 "V2" KIT with some new features that take the vehicle to the next evolutionary stage

Some technical changes have been made to our 1:10 Truggy - among other things, the vehicle now comes with LED lighting on the roof

NEW* Body in new race design
NEW* LED lighting
NEW* Downforce rear wing
NEW* even more tuning parts available

The KIT version is a kit that can be assembled with standard tools such as pliers and screwdrivers. Shock absorbers and gearbox units are already pre-assembled so that even children can build this vehicle under parental supervision. You can also decide for yourself which electronic components should be installed in the vehicle. The kit includes 2 gear units - a copper/plastic version with the gear ratio for brushed motors and a full metal version designed for a brushless drive. This means that there are no limits to the motorization.

4WD all-wheel drive
4 oil shock absorbers
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outlets
Aluminum main drive shaft with steel mounts
Adjustable upper tie rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)
Stylish Truggy body with add-on parts
"Light-Weight" chassis (less weight - longer driving time)
Many aluminum tuning parts available

Tec Spec

Scale 1:10
Dimensions (L/W/H): 405x325x165 mm
Weight: 1180g
Wheelbase: 270mm
Ground clearance: approx. 35mm
Track width: 270mm front/rear
Wheels: Ã˜ 105mm / width: 55mm
Shock absorber oil: 400CPS
Installation length of the shock absorbers: 90mm
Gear ratio BRUSHED version: pinion: 18T / main gear: 64T (module 0.6)
Gear ratio BRUSHLESS version: pinion: 23T / main gear: 64T (module 0.6)

Includes

1/10 Truggy "AT3.4V2" KIT version
Sticker sheet
Manual

Required To Complete

Radio and receiver
Speed controller and motor (brushed or brushless)
Steering servo with 25T
Drive battery (7.2V NiMH or 7.4V/2S LiPo battery)
Charger (suitable for the drive battery)
4* AA batteries for the remote control
