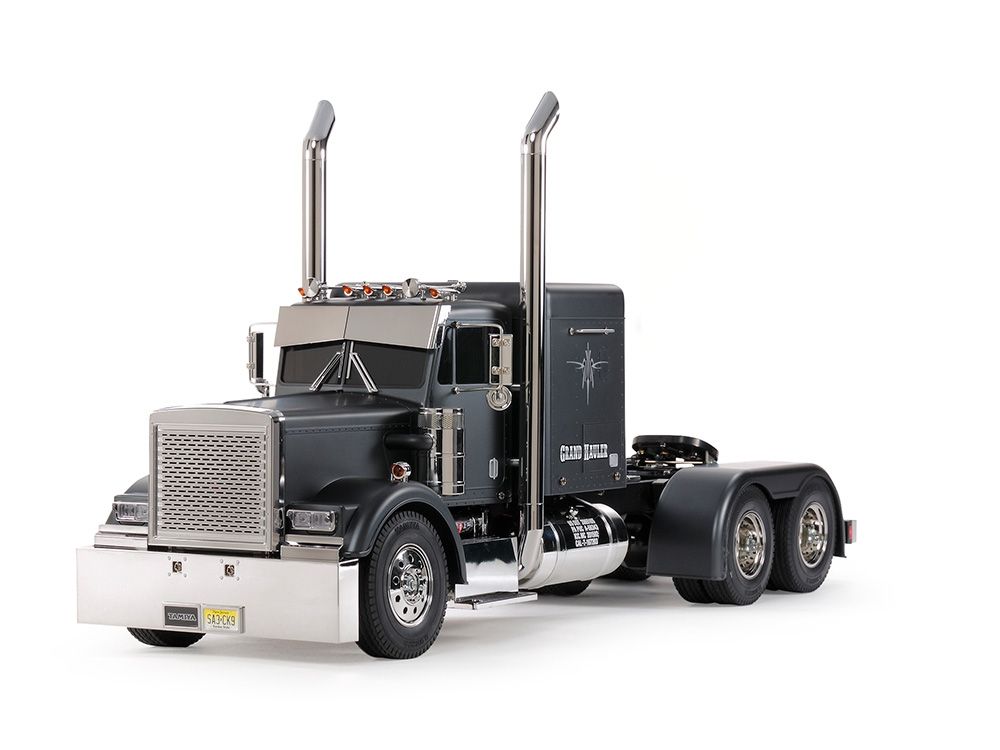

Tamiya Grand Hauler - Matt Black ( THC 56356)

This is a special edition of the Grand Hauler. The R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. The special edition version is a great option for those without the time or confidence to apply a paint job to their kit, as the body, and other key body parts are pre-painted Metallic black (Tamiya Color TS-40). Additionally, a matte coating is applied over the metallic black which provides a cool look as seen in current trends in the automotive scene.

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately)

Specifications

• Length: 692mm, Width: 192mm, Height: 330mm, Weight: Approx. 3.9kg (*with all equipment attached)
• Wheelbase: 433mm+103mm
• Tread: 156mm (Front), 138mm (Rear, Double Tire)
• Chassis: Aluminium & Polycarbonate Resin Ladder Frame
• Suspension: Front/Rear Leaf Springs
• Caster Angle: 0 ° (Front & Rear)
• Camber Angle: 0 ° (Front & Rear)
• Toe Angle: 0 ° (Front & Rear)
• Dampers: Front/Rear Aluminium Friction Dampers
• Drivetrain: Rear 2-Axle Drive
• Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff Gear: 3-Bevel Diff.
• Motor: Type 540
• Tire Width: 22mm (Front/Rear)
• Tire Diameter: 83mm (Front/Rear

Semi-Trailers Separately Available
Various types including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.
Required To Complete
4 Channel Radio System, Servo, Electronic Speed Controller, 7.2V Battery & Charger
