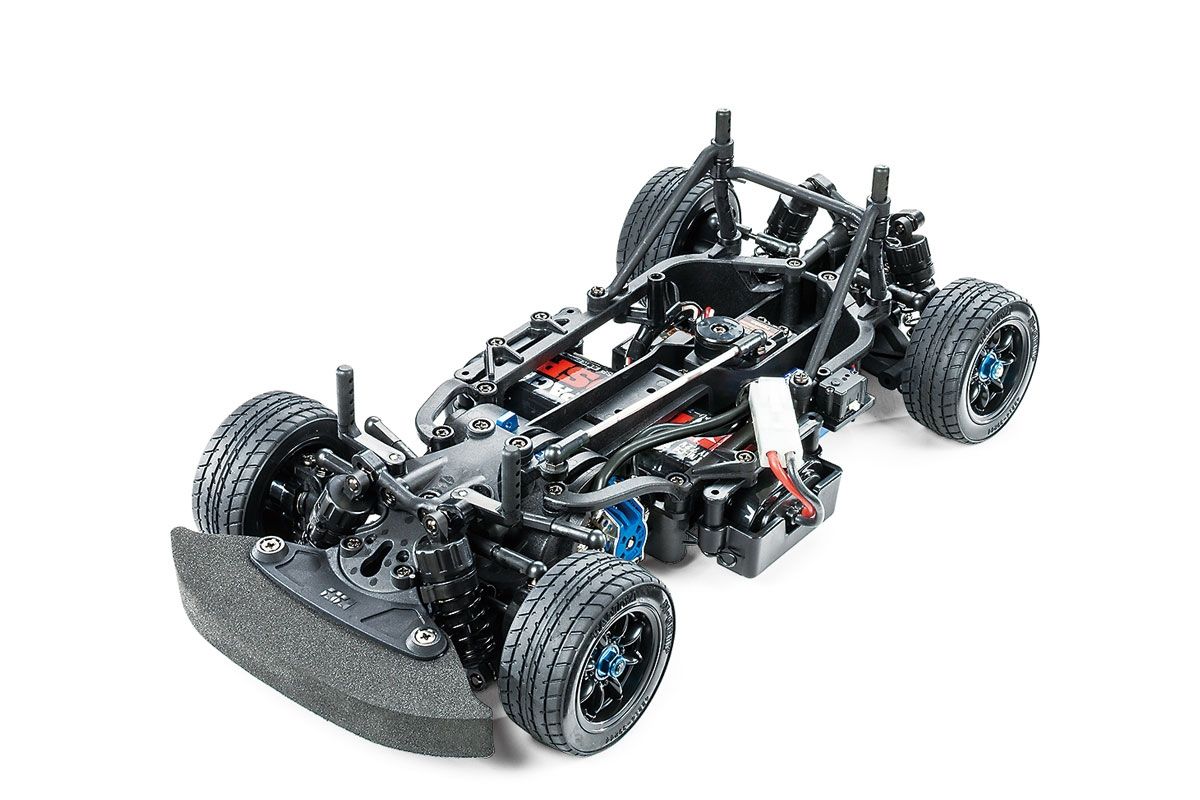

Tamiya M-07 Concept Chassis Kit ( THC 58647)

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Featured Components

• Monocoque frame chassis (with detachable lower section)
• Long suspension arms
• CVA oil dampers
• Full ball bearings
• Gear differential unit
• Universal drive shafts
• Hi-torque servo saver

Specifications

• Length: 332mm (including bumper)
• Width: 164mm
• Wheelbase: 225mm or 239mm (Selectable)
• Monocoque Frame
• Front-Midship Motor, Front-Wheel Drive
• Gear Differential
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• CVA Oil Dampers
• Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)

Required To Complete

2 Channel Radio System, Speed Controller, 1 Servo's, Battery & Charger, Bodyshell & Paint
