Tamiya M-08 Chassis ( THC 58669)

In stock Available in Store

SKU: THC58669-bundle

From £0.00

To £276.70

Customize Tamiya M-08 Chassis ( THC 58669)

Tamiya M-08 Chassis (THC58669) The car kit

1 x Tamiya M-08 Chassis ( THC 58669) + £164.00

Additional items to complete

1 x Ansmann AA Redline Alkaline 1.5v (4pcs) (5015563) + £1.99

1 x Core RC - 4012 - Servo 4Kg .12 Sec (CR493) + £9.49

1 x Hobbywing QUICRUN - WP1060 - Brushed - Sbec (HW30120060007) + £22.49

1 x Enrichpower EP Stick Pack - SC2000mAh - 7.2V NiMh (EP2000S) + £14.24

1 x Overlander NX-20 NiMH 20W Compact Charger + 7.2V 3000 NiMH Battery (OL2914A) + £27.99

1 x Absima 4 Channel Radio CR4S V2 2.4GHz incl. 1 Receiver (AB-2000014) + £36.50

Your Customization

Tamiya M-08 Chassis ( THC 58669)

Summary

Description / Tamiya M-08 Chassis ( THC 58669)

A GR8 M-Chassis Addition

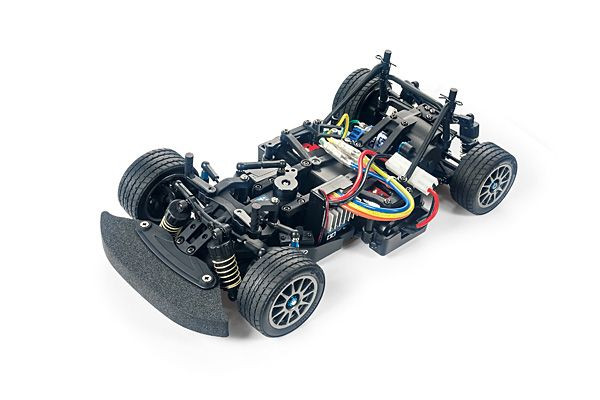

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbases. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for a ground hugging drive, and the front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.
Featured Components

M-07 Concept design long suspension arms
Oil-filled gear differential
Universal drive shafts
Turnbuckle upper arms
Full ball bearings
Hi-torque servo saver (black)

Specifications

Length: 319mm (in M wheelbase), Width: 165mm,
Choose between 210mm (S), 225mm (M) and 239mm (L) wheelbases
Monocoque Frame
Midship Motor, Rear-Wheel Drive
Oil-Filled Gear Differential
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
CVA Oil Dampers
8 potential gear ratios between 4.813:1 and 6.795:1 (kit-standard 20T pinion gear gives 5.776:1)

Required To Complete

2 Channel Radio System, 1 Servo's, ESC, Battery & Charger, Paint for the Body
