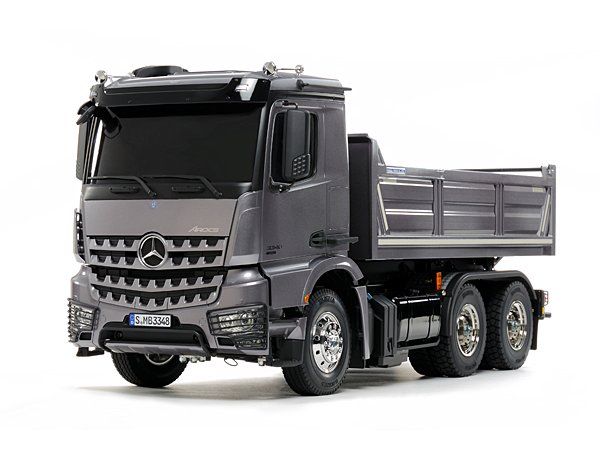

Tamiya Mercedes Arocs 3348 Tipper Truck ( THC 56357)

In stock Available in Store

SKU: THC56357-bundle

From £0.00

To £715.08

Customize Tamiya Mercedes Arocs 3348 Tipper Truck ( THC 56357)

Tamiya Mercedes Arocs 3348 Tipper Truck (THC56357) The car kit

1 x Tamiya Mercedes Arocs 3348 Tipper Truck ( THC 56357) + £561.70

Additional items to complete

1 x Ansmann AA Redline Alkaline 1.5v (4pcs) (5015563) + £1.99

1 x Core RC - 4012 - Servo 4Kg .12 Sec (CR493) + £9.49

1 x Hobbywing QUICRUN - WP1060 - Brushed - Sbec (HW30120060007) + £22.49

1 x Enrichpower EP Stick Pack - SC2000mAh - 7.2V NiMh (EP2000S) + £14.24

1 x Overlander Overlander NX-20 NiMH 20W Compact Charger (OL2914) + £15.18

1 x Futaba T6L Sport 2.4GHz T-FHSS & R3106GF Receiver (FUT05003115-3) + £89.99

Your Customization

Tamiya Mercedes Arocs 3348 Tipper Truck ( THC 56357)

Summary

Description / Tamiya Mercedes Arocs 3348 Tipper Truck ( THC 56357)

Tip-Top!
The Arocs series is a line of heavy-duty models introduced in 2013 by the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Arocs 3348 6x4 tipper truck, which runs on a 12.8-liter turbocharged inline-6 engine capable of 480hp. The highly detailed body breathtakingly captures the slimline form of the truck cab, including the distinctive bucket tooth design grille. Depictions of headlight guards, front bumper and skid plate underneath are parts of a truly realistic finish. The assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter. The ladder frame chassis features aluminium side channels with resin cross members. A realistic 1-piece resin bed is reinforced with a metal frame. Power from the front-mounted motor is delivered to rear axles via propeller shaft; a built-in differential gear on each axle enables smooth cornering. Highly-realistic suspension utilizes metal leaf springs and friction dampers. The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
Specifications

Length: 576mm, Width: 190mm, Height: 267mm, Weight: Approx. 4.3kg (*with R/C equipment and battery pack attached)
Wheelbase: 257mm+103mm
Tread: 156mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminium & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle: 0 ° (Front & Rear)
Camber Angle: 0 ° (Front & Rear)
Toe Angle: 0 ° (Front & Rear)
Dampers: Front/Rear Aluminium Friction Dampers
Drivetrain: Rear 2-Axle Drive
Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff Gear: 3-Bevel Diff.
Motor: TR Mighty-Tuned (35T)
Tire Width/Diameter: 22/83mm (Front), 22/84mm(Rear)

Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

Required To Complete

4 Channel Radio System, Servo, Electronic Speed Controller, 7.2V Battery & Charger
