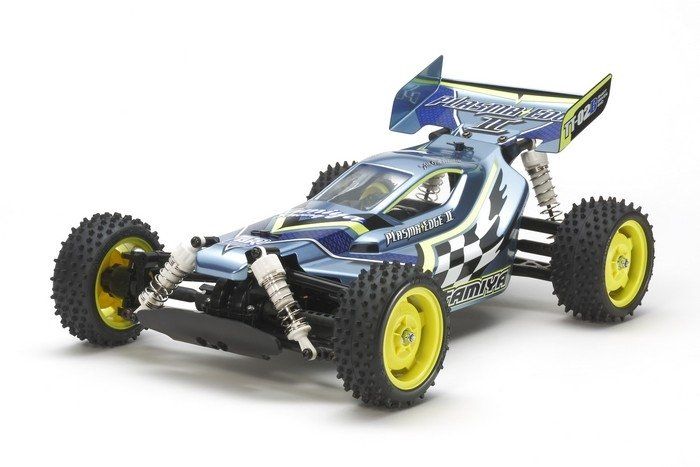

Tamiya Plasma Edge II TT-02B ( THC 58630)

Shaft-Driven 4WD and Superior Handling from the TT-02B

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening a few screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

Specifications

• Length: 370mm, Width: 250mm, Height: 160mm
• Wheelbase: 266mm
• Tread: 217mm (Front), 208mm (Rear)
• Bathtub-type Chassis Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear) (Square Spike Tires)
• CVA Oil Shock Units
• Type 540 Motor
• Electronic Speed Controller included

Required To Complete

2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
