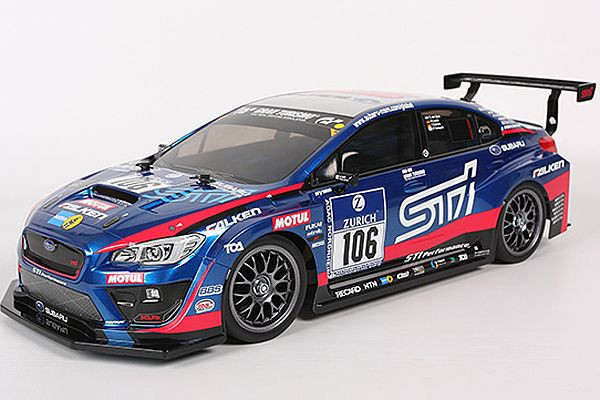

Tamiya Subaru WRX STi 24 hr Nrbg TT-02 ( THC 58645)

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal colour mesh wheels are paired with slick tires for a racy finish.

Specifications

• Length: 497mm, Width: 189mm, Height: 135mm
• Wheelbase: 257mm
• Tire Width/Diameter: 27/67mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor
• Electronic Speed Controller included

Required To Complete

2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
