Tamiya Suzuki Swift sport M-05 ( THC 58679)

The Hottest Hatch?

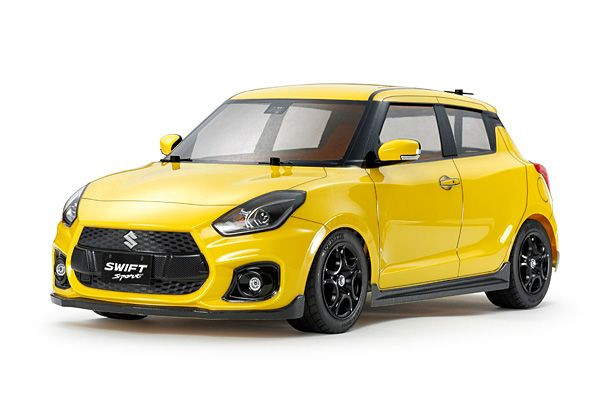

Suzuki's popular hot hatch underwent a model change in 2017, receiving a revamped body and a 140hp 1.4-liter turbocharged engine driving the front wheels. This R/C model assembly kit depicts that car, with a polycarbonate body to recreate the stylish Swift sport form. A full set of stickers is included to recreate details across the body, and the model is based upon the proven M-05 chassis.

M-05: Low Centre of Gravity, High Performance!

The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low centre of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. 5-spoke wheels are moulded in black and have tires with realistic tread patterns and inner sponge. In this kit, the chassis is setup with the 239mm L wheelbase.

Specifications

• Length: 381mm, Width: 167mm, Height: 145mm
• Wheelbase: 239mm
• Tread (Front & Rear): 138mm
• Tire Width/Diameter (Front & Rear): 25/59mm
• Monocoque Frame
• 3-Bevel Differential Gear
• Front-Wheel 2WD
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front & Rear Friction Dampers
• Gear Ratio = 5.8:1
• Type 540 Motor
• Electronic Speed Controller included

Required To Complete

2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
