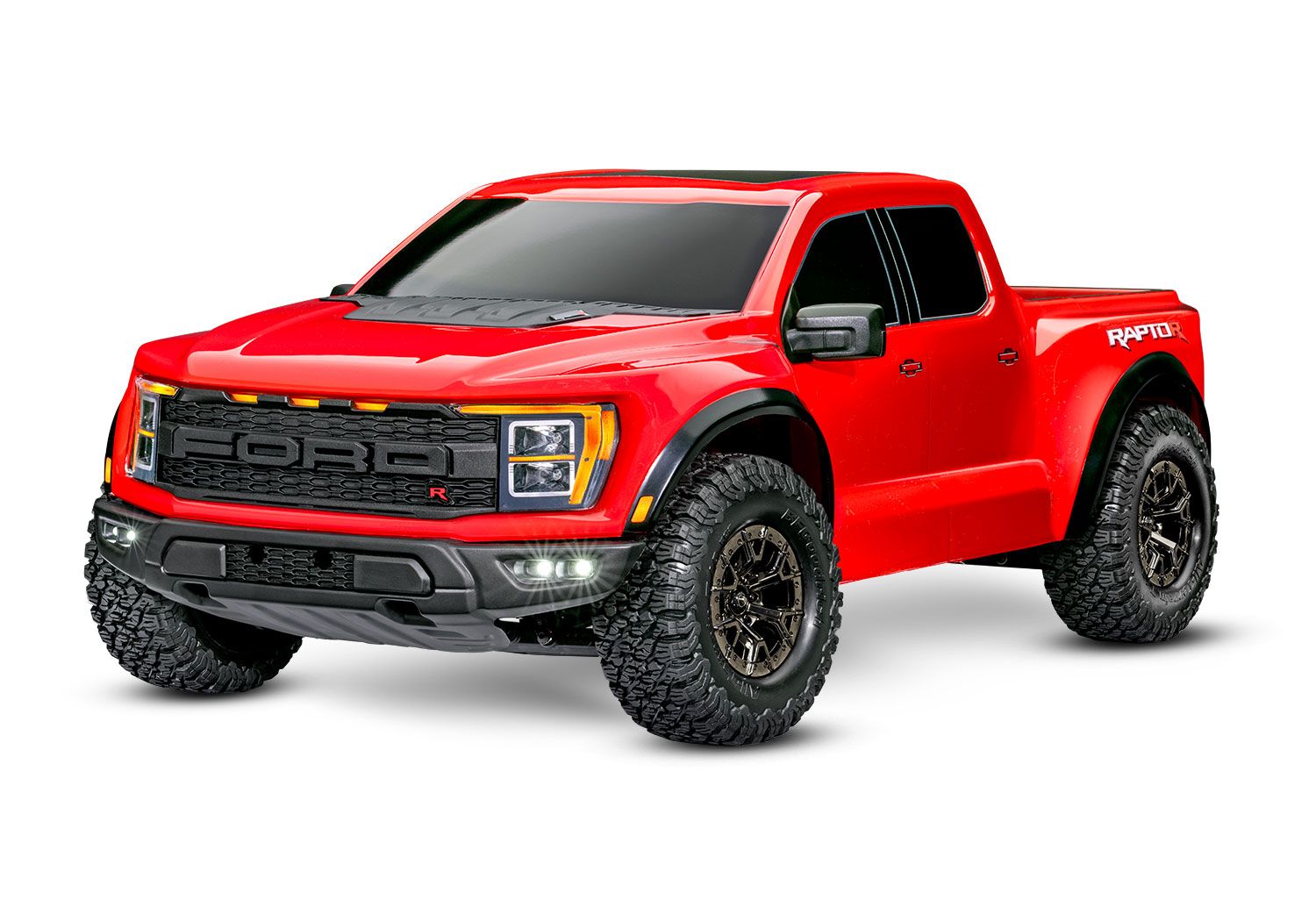

Traxxas Ford Raptor R Pro Scale 4WD Brushless Replica Truck - Red (TRX101076-4-RED)

The Traxxas Raptor R is the newest member of the innovative Traxxas Pro Scale ® lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon ® brushless horsepower to faithfully capture the Raptor R driving experience. Only Traxxas Pro Scale ® delivers both the exacting realism and unbeatable speed and durability performance drivers demand.

PRO SCALE DESIGN
Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R stops the show with a Ford-licensed body and moulded replica parts for maximum scale authenticity. Velineon ® brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R performance credentials to match its stunning looks.

EXTREME HEAVY DUTY UPGRADES
The Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Raptor R's driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.

CLIPLESS BODY MOUNTING
High-flying stunts and 60+mph desert speed runs won't upset Raptor R's tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R's hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body's clean lines.

NEW EXTENDED 4X4 CHASSIS
Raptor R's new extended chassis features a longer wheelbase developed specifically for this application. In addition to ensuring accurate proportions, the longer footprint improves high-speed stability and refines handling. Extra reinforcements in the chassis improve structural rigidity for hard-charging action and high-flying stunts.

Key Features

• Officially Licensed Ford ® F-150 ® Raptor R Clipless Pro Scale ® Body with moulded scale details: bumpers, grille, tailgate, side mirrors, and hood vent and LED lighting in front and rear bumpers.
• Clipless Body Mounting which holds tight for intense action and quick and easy removal with smooth appearance with no body posts or clips
• Extreme Heavy Duty Upgrade Kit Installed including strengthened C-hubs, axle carriers, steering blocks, and shock towers, extreme heavy duty driveshafts, oversize diameter, 6mm axles, and steel wheel hexes
• VXL-3s Waterproof Electronic Speed Control with cooling fan with large heat sink and three programmable drive profiles
• Up to 60+ mph with 3s LiPo battery
• Traxxas Stability Management ® (TSM) improves straight line acceleration and braking on low-traction surfaces
• TQi 2.4GHz 2-channel High Output Radio System
• Velineon 3500 kV Brushless Motor with ultra high-temperature sintered Neodymium magnets
• Full-time shaft-driven 4-wheel drive
• Licensed Ford ® replica option wheels 2 €³ outer diameter, 3 €³ inner diameter and Licensed BFGoodrich ® All-Terrain T/A ® KO2 tyres

Specs:

• Length: 24.98 inches (637mm)
• Front Track: 11.63 inches (289mm)
• Rear Track: 11.63 inches (289mm)
• Ground Clearance: 1.38 inches (35mm)  2.05 inches (52mm) (center)
• Weight (no battery): 6.05 pounds (2.74kgs)
• Height (overall): 8.91 inches (226mm)
• Wheelbase: 15.11 inches (384mm)
• Shock Length (front): 3.45in (88mm) - Long
• Shock Length (rear): 3.98in (101mm) - XX-Long
• Tire Diameter: 4.5 x 1.9 inches (114mm x 48mm)
• Wheel Diameter: 2.2 inches (56mm) (inner)  3.0 inches (76mm) (outer)
• Speed Control: Velineon ® VXL-3s (#3355R)
• Motor (electric): 3500KV Velineon ® Brushless
• Overall Drive Ratio: 37/13 ring/pinion gear ratio
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Tires: Licensed BFGoodrich ® All-Terrain T/A ® KO2 2.2 €³ pre-glued with foam inserts
• Tire Diameter: 4.31 inches (114 mm) (front and rear)
• Wheels (front/rear): Licensed 2.2 €³ Ford ® Factory option wheel
• Wheel Diameter: 2.2 inches (56 mm) outer  3.0 inches (76 mm) inner
• Radio System: 2-Channel, TQi 2.4GHz Transmitter with TSM ® receiver
• Servo: 2075 Waterproof Digital Servo (125oz-in torque)
• Top Speed: 60+ MPH with optional included gearing and 3s LiPo
• Battery Compartment (L/W/H): 165mm (6.49 €³) x 50mm (1.95 €³) x 23/26mm (1.02 €³/0.90 €³)
• Required Batteries: 4 AA (transmitter), Vehicle (see battery finder)

What's in the Box

• 1x Raptor R with Velineon VXL-3s ESC and 3500 kV motor
• 1x Quick Start Guide
• TQi 2.4 GHz radio system
• 1x High quality maintenance tools

Required To Complete:

• 8.4v NiMH or 7.4/ 11.1v LiPo
• Suitable Charger
• 4 x   AA's for Transmitter
